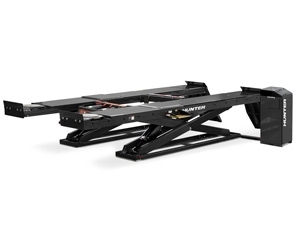

RX Surface-Mount Scissor Rack - Black

* log in for dealer pricing.


10,000 lb. capacity surface mount scissor lift, includes (2) 6,000lb Swing Jacks, and Low Friction turnplates.


  • Large capacity with a small footprint
  • 24 in. wide runways
  • Best in class drive on height
  • Integrated air line
  • Sensor feedback system
  • Velocity safety fuses
  • Safety locks
  • Movable work steps
  • Fast descent speed - 50% faster lowering times
  • Ensures a soft landing by automatically slowing the last several inches.
  • Swing Air Jacks - Lift vehicles off the runways during alignment procedures and other multi-service operations


  • (2) 6,000 lb. Swing Jacks
  • Low Friction Turnplates
  • Louvered ramps


Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.


Product Specification

Max. vehicle weight 10,000 lbs. (4536 kg)
Max. wheelbase: General service 171" (4343 mm)
Max. wheelbase: Two-wheel alignment 166" (4216 mm)
Max. wheelbase: Four-wheel alignment 158" (4013 mm)
Min. four-wheel alignment 88" (2235 mm)
Max. lifting height 72" (1829 mm)
Alignment height All lock positions
Runway width 24" (609 mm)
Tread width: Min. inside 40" (1016 mm)
Tread width: Max. outside 88" (2235 mm)
Air pressure 90-150 psi (6.2 - 10.3 bar)
Speed 55 seconds raise, 25-50 seconds descent

Tool Requirements

Tool Number HUNRX10KAUBL
Availability Available
Superseded To
Tool Class AR
VW US Requirement Minimum
VW US Auto Ship Number
AUDI US Requirement Minimum
AUDI US Auto Ship Number
VW Canada Requirement Minimum
AUDI Canada Requirement Minimum
VW MRT Quantity 1
AUDI MRT Quantity 1
