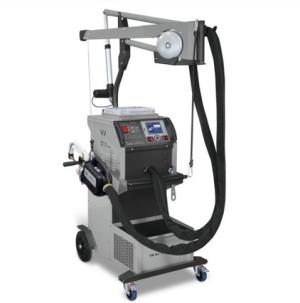

Resistance spot welding machine VAS 821 101A
The processor-controlled multifunction resistance spot welding machine VAS 821 101A with transformer G-clamp is suitable for all repair spot welds on high-strength, ultra-high-strength and hot-form-hardened steel sheets approved for Volkswagen Group vehicles
(UHSS/BTR).
Maximum electrode contact pressure of 550 daN at 8 bar.
Welding power up to 14,500 amps. Existing disturbance variables such as paint residues,
hollow layers, etc. are detected in automatic mode and adaptively corrected as far as possible.
This welding machine is intended for connection to the USA mains.
Technical data:
Input voltage: UIN 3~ 400 V - 50/60 Hz
Mains connection rating: UIN 20 A
Rated power at 50% duty cycle: S50 25 kVA
Max. continuous power: Sp 14 kVA
Max. welding power: Smax 80 kVA
Secondary voltage: U2d 7 VDC
Max. short-circuit current: 12 cc 14,500 A
Max. permanent current: I2P 1,800 A
Max. regulated welding current 14,500 A
Mains fuse aM 20 A slow-blow D
Leakage current 30 mA
Operating temperature range +5°C / +45°C
Transport + storage temperature range -20°C / +70°C
Max. humidity 80%
Max. altitude 2,000 m
Thermal overload protection Rectifier 70°C
Protection class IP 21
Width 650 mm
Depth 800 mm
Height 2,300 mm
Weight 107 kg
Power cable length 8,000 mm
Clamp cable length 6,000 mm
Max. inlet air pressure: P max. 10 bar
Coolant flow rate 2 L/min
Min. regulated contact pressure: F min. 100 daN
Max. regulated contact pressure: F max. 550 daN
Scope of Delivery:
Liquid-cooled resistance spot welder with
• Transformer, G-type welding gun, and 6 m welding gun cable
• Standard electrode arm 190 x 97 mm
• Cable support
• Spring balancer
• 360° orbital welding gun guide
• SD card including SPOTSAVE software
• Wear parts box with 6 Type A electrode caps, Ø 13 mm each
• Motorized boom for adjusting the working height
