Application:

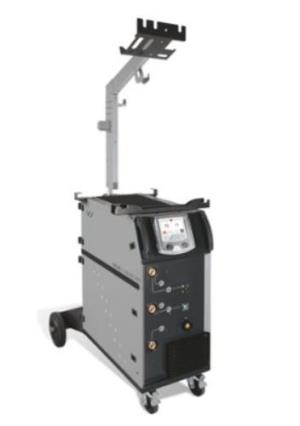

The shielded arc welding equipment VAS 821 005 is a compact, easily movable, inverter-based pulsed current source with a maximum welding power of 320 Amps. The device is equipped with 3 integrated 4-roller wire feed units. It is also suitable for welding wire filler metals such as aluminum (e.g., AlSi 5 and ALSi 12) that are sensitive to the wire feed function. The synergy programs for steel, stainless steel, MIG brazing and aluminum materials stored in the device can be easily called up from the program memory via the “2-button operating unit” with a large multi-colored display and can be processed in the “Easy mode” by specifying only 2 parameters. Further advantages are the intuitive operation and a reproducible process reliability. In addition, a tack weld function for manual welding is available.

Technical data:

• Power supply: 208-240V 3 Phase, 50/60 Hz (US version)
• Fuse: 16 A
• IP degree of protection: IP23
• Welding current: 10 ... 320 A (US version 250 A)
• Wire feed: 3 x 4-roller drive, 0.5 ... 20 m/min., adjustable in increments of 0.1 m/min.

Scope of delivery:

• Mobile welding unit with locking device for 2 shielding gas cylinders
• 3 hose packages with air-cooled 250 A shielded arc welding torch
• Ground cable
• Operating manual
• Universal coil mountings, incl. adapter
• Training and installation is included!


Warranty:

24 Months

Manufacturer:

GYS

ASE 821 005 80 023

Sold by: Snap-on Business Solutions 1-800-892-9650
