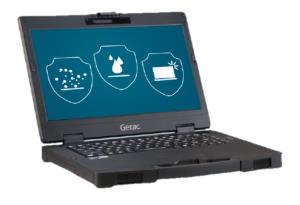

Professional Diagnostics Laptop Only (without VCI)
Model: VAS6150F-NV
$3,920.35 *

log in for dealer pricing.
Out of Stock - Order now to secure future fulfillment
Add To Cart

Only diagnostics laptop station without VCI Interface (without VAS6154B).

The diagnostics tool VAS 6150F is impressive not only with improved performance, but also with maximum user safety, a high level of user comfort and many other highlights, making it the perfect companion for rugged everyday use in the workshop. What’s more, it has been optimally adapted to existing components, such as the Offboard Diagnostic Information System Service and diagnostics interface – the next generation, setting new benchmarks.

Product Highlights/Features:

  • Quicker and safer: The perfectly coordinated system can process large quantities of data faster and safely perform flash actions.
  • Perfectly coordinated: Only the VAS 6150F is tailored to use with the Offboard Diagnostic Information System and diagnostics interface.
  • More robust and more shock-resistant: It offers rugged USB 3.0 interfaces suitable for the workshop for a secure and stable connection of external VAS diagnostics equipment and an improved IP protection class.
  • Clever and functional: Thanks to the second WiFi module, there is always a direct connection to the diagnostics interface, even if you leave the range of the workshop network on test drives.
  • Ready to use straight away: The VAS 6150F comes with the current Win10 version (LTSC 2019), does not require manual updates and can be used straight away – and the device also has a longer battery runtime.
  • User-oriented: The illuminated keyboard and new sunlight readable display ensure a high degree of user convenience in all lighting conditions.
  • As protected as possible: The optional bumper-to-bumper guarantee also covers damage, which means you can reduce IT costs and down times in your company.

Technical Data:

  • CPU: Intel® Core™i5-1145G7, vPro™, 2.6GHz processor
  • Graphics card: Intel® Iris Xe Graphics
  • Display: 14“ full HD (IPS) 16:9 TFT LCD (1920×1080) with LED back light sunlight readable display (1000 nits), with glass, with new AG  lm (12% haze)
  • Hard drive: 512GB SSD
  • Keyboard: Illuminated
  • Operating System: Win10 IoT Enterprise 2019 LTSC
  • RAM: 16GB DDR4
  • Wi-Fi: Intel® Wi-Fi 6AX201 IEEE802.11ax/ 2.Wi-Fi module
  • Connections:
    • 4x USB 3.1 type A,
    • 1x USB 3.1 type C
    • 2x USB 3.0 rugged 9-pin
  • Battery: Main battery 10, 8 V; 6900 mAh Optional: second battery (drawer-type panel) 10.8 V; 4200 mAh
  • IP degree of protection: IP53 - Protected against damaging quantities of dust, protection against falling water splashes up to 60° from the vertical

Tool Requirements

Tool Number VAS6150F-NV
Availability Available
Superseded To
VW US Requirement Optional
VW US Auto Ship Number
AUDI US Requirement Optional
AUDI US Auto Ship Number
VW Canada Requirement Optional
VW Canada Auto Ship Number
AUDI Canada Requirement Optional
AUDI Canada Auto Ship Number
