Application:

With the multifunction seat assembly device (for lifting out, holding, transporting, lifting in), it is possible for one person to remove and install car seats easily and ergonomically.

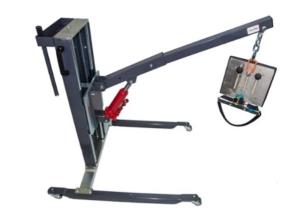

The seat assembly device VAS 281 003 offers:

• Ergonomic and safe operation for seats weighing up to 80 kg
• Working range from 0 mm – approx. 1400 mm lifting height
• Device enables one-handed operation during entire removal/installation procedure
• Helps to prevent damage to the seat, steering wheel, consoles, doors, attachments thanks to reliable removal/installation
• Minimum height required to move under vehicle 120mm, therefore also suitable for sports cars

Technical data:

• Lifting height: approx. 1400 mm
• Safe working load: 80 kg
• RAL 7012 (basalt grey)

Items supplied:

• Lifting device
• Hydraulically adjustable boom
• Seat mounting plate
• Bit for rechargeable screwdriver
• Crank
• Operating instructions
• Assembly instructions

Warranty:

24 Months

Manufacturer:

We4sales GmbH

ASE 281 003 00 000
