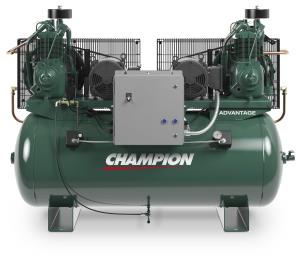

7.5HP Duplex Advantage Series Reciprocating Compressor 208V/3PH, 120H
$12,856.92 *

* log in for dealer pricing.
Direct from 3rd Party Supplier
Add To Cart


Advantage Series Duplex Reciprocating Air Compressor - 7.5 hp - 120 Gallon Horizontal Tank, 208 Volt, 3 Phase
**Please confirm power requirements when ordering.

The Champion Advantage Series offers a complete line of compressed air packages that meet any application. The Advantage Series has been carefully engineered to stand up to years of use. Every Advantage Series compressors arrives with up to six standard, pre-installed accessories.


  • Heavy-duty two stage splash lubricated air compressor pumps
  • Multi-finned cylinders
  • Integral cylinder head
  • Intercoolers for cooling between stages
  • Reliable high flow disc valves
  • Oversized main bearings
  • Balanced crankshaft
  • Oil level site glass
  • Centrifugal unloader for loadless starting
  • 0-300 p.s.i.g. air pressure gauge
  • Factory fill with ChampLub lubricants
  • ASME code air receiver (pressure relief valve, service valve, drain valve, pressure gauge)
  • Vertical or horizontal configurations
  • Oversize inlet filter - silencers
  • Vibration isolator pads
  • Low oil level monitor
  • Mounted NEMA 1 Control panel with control voltage transformer


Three (3) years standard warranty

*Extended six (6) year warranty option with purchase of Extended Warranty Kit

Extended warranty is available. Click Here for more information.

Product Specification

Approximate Weight 1305 lbs.
Tank Capacity 120 Gallon, Horizontal
Motor (2) 7.5 HP
Dimensions 83"L x 34"W x 54"H
Voltage 208V / 3 PH
