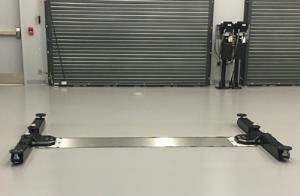

Wide-Electric Inground Cassette 8K Lift
Model: CLFEW08

* log in for dealer pricing.


The EW08 Wide-electric hydraulic cassette-style inground EnviroLift® meets the rigorous demands of professional service facilities. With enhanced wipers, both top and bottom, and 5” chrome pistons, your shop will have a superior, more stable and repeatable lift resulting in increased productivity. These inground lifts also eliminate environmental concerns with a fully contained galvanized steel cassette tub.
It features chrome pistons, extra wide drive-through 3-Stage Arms and double telescoping screw pads.


  • Chrome non-breathing ram style cylinder minimizes water intake and other contamination
  • Enhanced wiper at top and bottom of bearing provides better grease retention and minimizes contaminates from entering into bearings
  • Mechanical lock with multiple lock positions provide safety and allows technician to work at their ergonomic height to increase productivity and minimize fatigue
  • Air lock release cylinder is made from corrosion resistant materials for a longer working life.
  • Fully contained and sealed galvanized steel cassette tub eliminates risk of hydraulic fluid seeping into the ground
  • Double telescoping screw adjusts from 3.75” to 5.75” with rubber pad for frame contact
  • Wide drive-thru at 102” accommodates wider vehicles, minimizes tire pinching and provides easy drive-on


  • CLFEW08CK Completion Kit for EW08 - Includes 5" chrome pistons, 8K capacity lifting unit, power unit, superstructure, auto greaser kit, hardware box
  • CLFEW08PK Pre-Kit for EW08 - Includes the galvanized cassette tub


One year warranty on labor, two year warranty on parts, and two year structural warranty.

Product Specification

Drive-Thru Clearance 102” (2591mm)
Arm Reach - Minimum 25.25” (641mm)
Arm Reach - Maximum 45.25” (1149mm)
Min. Screw Pad Height 3.75” (95mm)
Capacity (per arm) 2,000 lb.
Guide Plunger Diameter 5” (127mm)
Motor 3HP
Voltage (Single Phase Std.) 208v - 230v
Speed of Rise 38 Seconds
Air Requirements 75 - 125 psi
Lifting Capacity 8,000 lb.
Rise Height 73.25” (1861mm)
Width Overall 115.75” (2940mm)
